S2OPC Linux compilation steps

This guide compiles the S2OPC OPC UA stack from source on a Linux host running Debian 9.5 or Ubuntu, and runs its demo application. It covers the package dependencies, the build, and the publisher/subscriber sample (pubsub_server, which runs both roles in one process). For the real-time PubSub variant of the same stack over TSN, see S2OPC - TSN.

Verified against S2OPC Toolkit 1.0.0 in October 2020, on the dependency versions pinned below. The stack has moved on considerably since — see the stack comparison for current findings — so treat the version pins here as what was tested rather than as a current recommendation.

Below are the list of hardware used for setting up the demo for this user guide. But you can use a different set of hardware as per availability.

1. DUT H/W: i5 Quad core
2. DUT S/W: Install debian 9.5 or ubuntu on the DUT
3. [Note] The DUT hardware configuration is upto the users. If you need steps to setup the DUT with Linux + RT patch follow this QSG.

Below Linux package dependencies need to be met for the S2OPC demo application to work.

• Open terminal
• Login as root

$ su

• Create an installation folder(parent folder) and install the below dependency packages on the DUT from the parent folder

# mkdir S2OPC && cd S2OPC/

# wget https://github.com/Kitware/CMake/releases/download/v3.19.0-rc1/cmake-3.19.0-rc1.tar.gz
# tar -xvzf cmake-3.19.0-rc1.tar.gz
# cd cmake-3.19.0-rc1/
# ./configure
# make
# make install

# cd ..
# apt-get install autoconf
# apt-get install libtool
# wget https://github.com/ARMmbed/mbedtls/archive/mbedtls-2.16.0.tar.gz
# tar -xvzf mbedtls-2.16.0.tar.gz
# cd mbedtls-mbedtls-2.16.0/
# make
# make install

# cd ..
# git clone https://github.com/libexpat/libexpat.git
# cd libexpat/expat/
# ./buildconf.sh
# ./configure
# mkdir build
# cd build
# cmake -DCMAKE_INSTALL_INCLUDEDIR=/usr/local/lib .. && sudo make install

# cd ../../..
# wget  https://github.com/libcheck/check/releases/download/0.14.0/check-0.14.0.tar.gz
# tar -xvzf check-0.14.0.tar.gz
# cd check-0.14.0/
# mkdir build
# cd build/
# ccmake ..
# make
# make install

Download and compile S2OPC sample application. Clone the toolkit 1.0 release version in the S2OPC parent folder.

# cd ../../
# git clone https://gitlab.com/systerel/S2OPC.git --branch S2OPC_Toolkit_1.0.0
# cd S2OPC

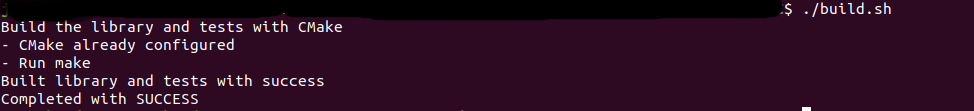

# ./build.sh
# cd build/bin/

After successful compilation, the binary is available as pubsub_server in the bin directory.

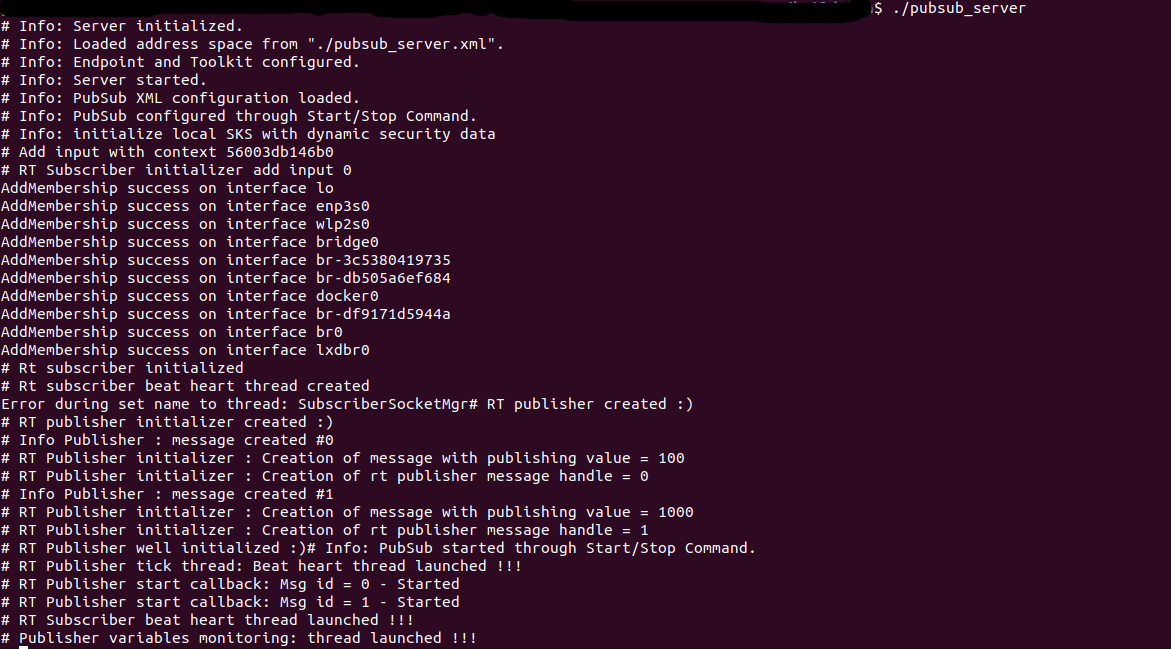

# ./pubsub_server

This sample application runs both the publisher and subscriber demo.

If you want to edit the demo application to test out your configuration, below are the relevant information.

• OPC UA Address Space — the default address space for the publisher/subscriber application is located in build/bin/pubsub_server.xml
• Pub/Sub configuration — the default Pub/Sub configuration is located in build/bin/config_pubsub_server.xml
• Dynamic configuration — Pub/Sub configuration and address space can be loaded at run-time from its XML representation.

S2OPC stack includes a few other helpful features and demo applications to help you with your evaluation.

• OPCUA Client server examples
• OPCUA Pub/Sub runtime information model and configuration update
• Real time OPCUA PubSub over TSN
• OPC UA demo on Windows, Vxworks, Zephyr and FreeRTOS
• Cyber security certifications

For more help with setting up your evaluation and toolkits, contact us at adopt.opctsn@aeicor.com
You can also reach S2OPC support at https://www.s2opc.com
